Since my original Brother Package (the one it came shipped with) was damaged i figured i need to print a case. Checked makerworld and my needs werent satisfied. I wanted to be able to boot and charge the device while in its case as well as being able to print. Also i wanted to have space to store some of my Tapes and a charger for it so i dont need to search for them.
This case covers all of that, as well as a removable bin which allows me to start a massive printing qeueu without having a mess on my table due to all the automatically cut labels. One could say another attempt for print in place since we dont have to move the printer to start printing labels
Download the model printing file on Makerworld

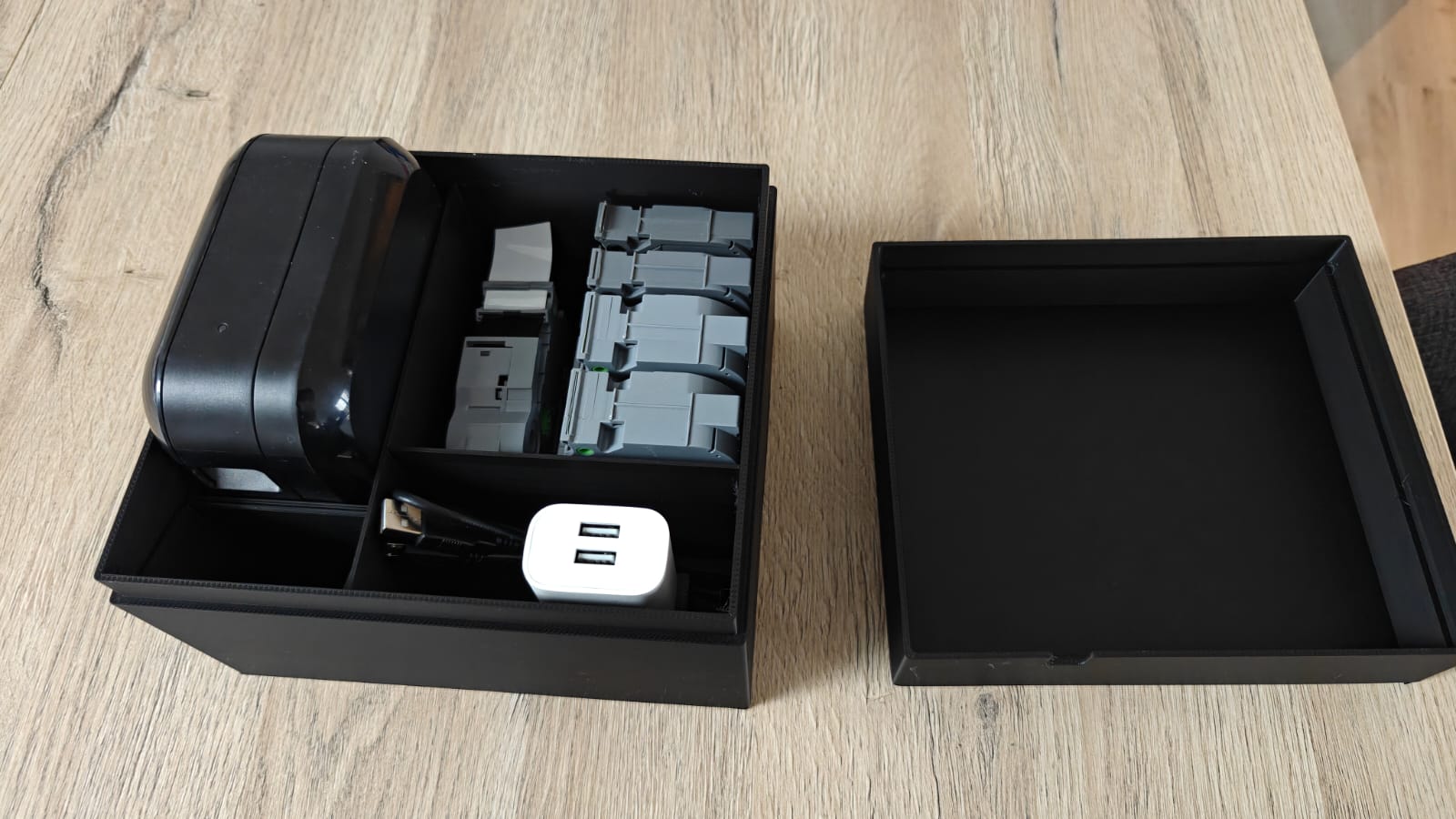

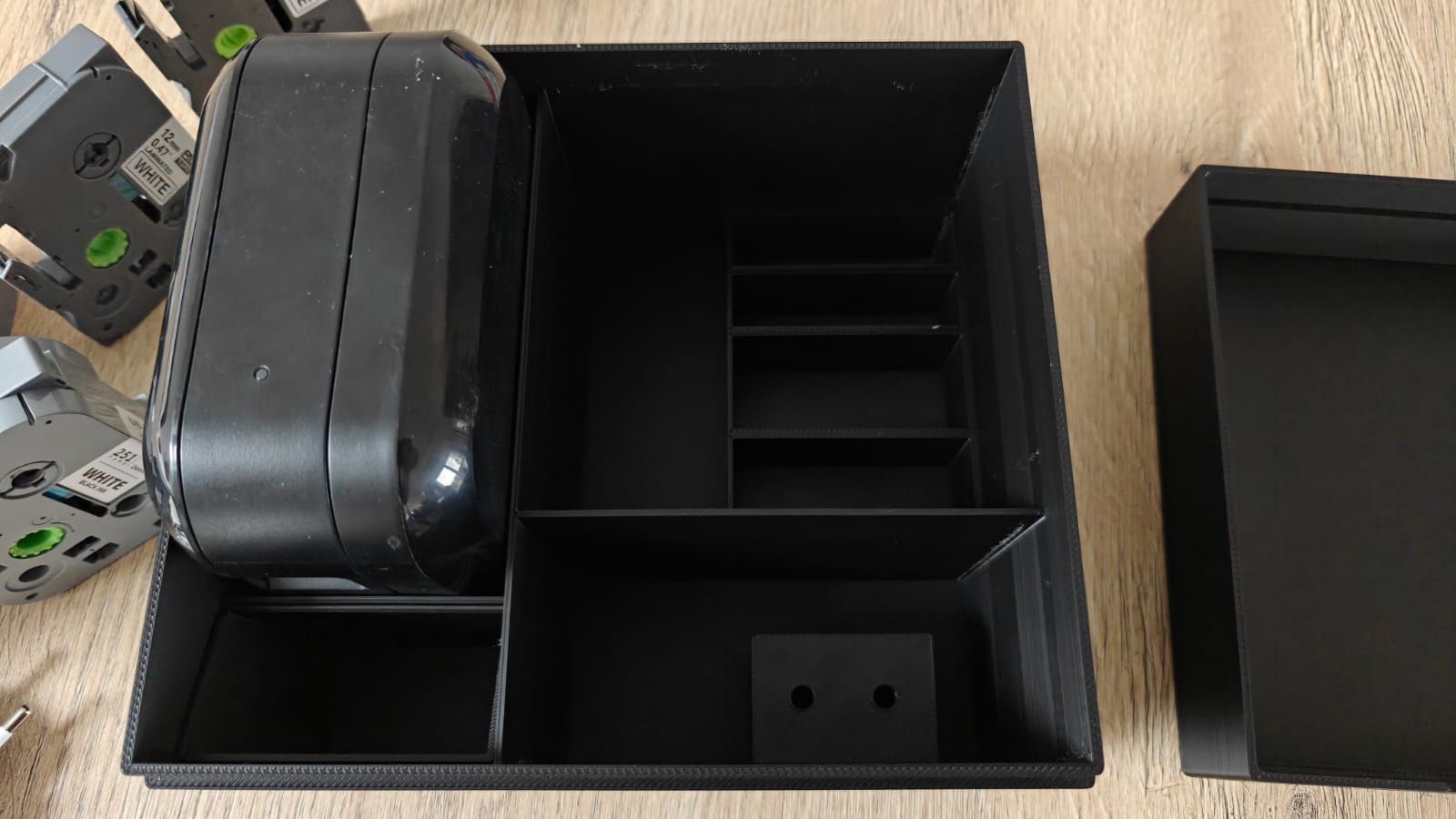

Feature sheet:
1x Slot for amazon basics wall plug (European)
2x Slot for TZC-231 (12mm) tapes
2x Slot for TZC-251 (24mm) tapes
1x Slot for a Brother P-Touch Cube PT-P710BT
1x Slot for the removable bin
1x Hole in the removable bin for getting it out easily

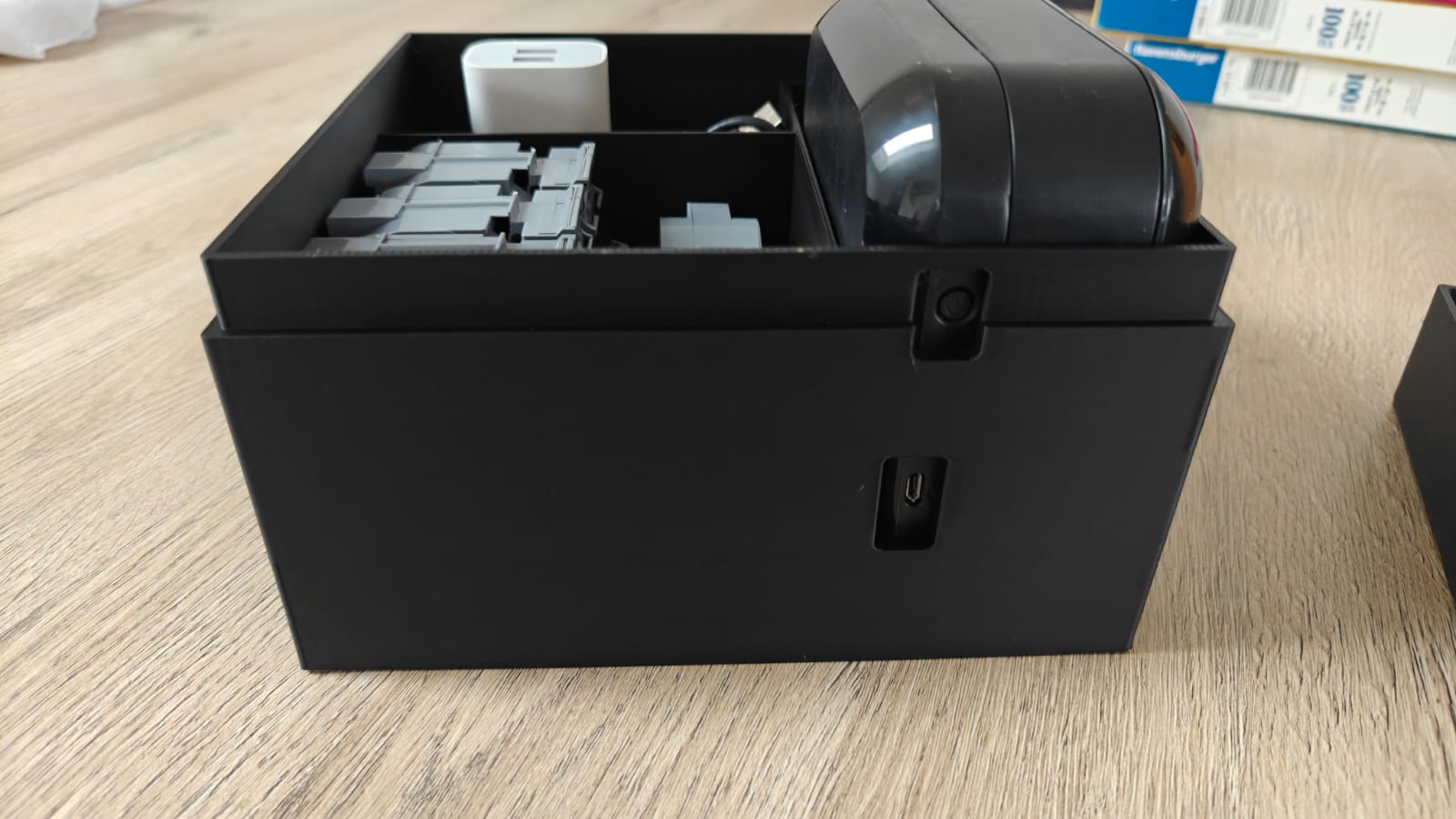

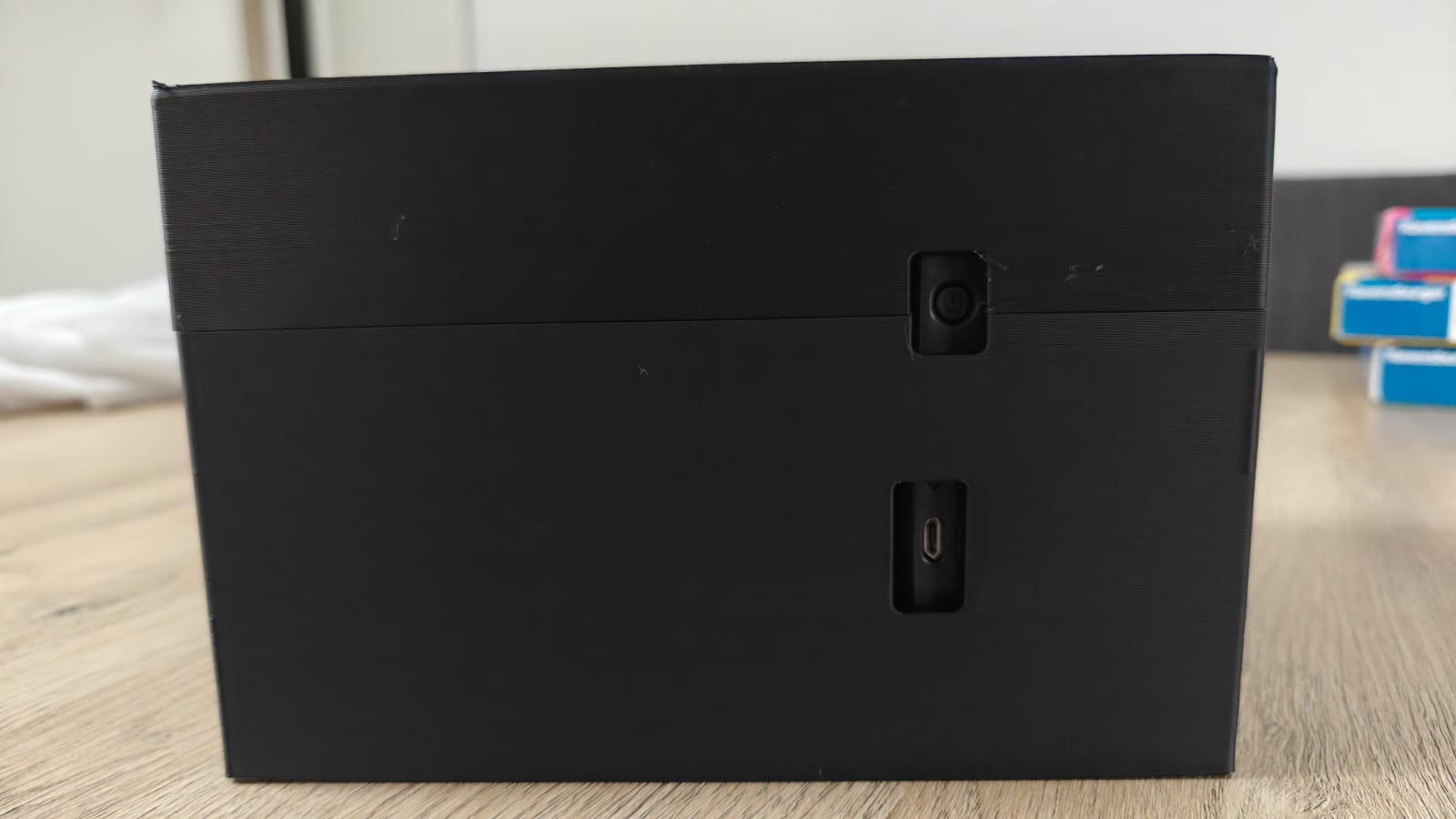

1x Hole for powering the device
1x Hole for charging the device
Also theres a little space leftover for cables and more tapes
I will attach a second print where i added notches to the outside of the case so removing the lid gets easier.
Also i found if you use mineral oil inside the removable bin as well as the chamfer on the P-Touch Cube where the labels slide off its far more satisfying since the labels glide into the bin easier and they wont get caught in the bin. Just make sure to wipe off any excess oil with a clean rag and give it some time to cure.
